Solar Street Light Mini Series

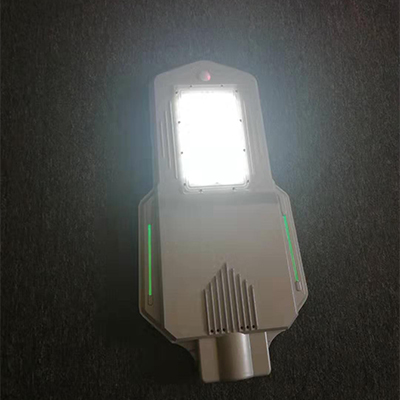

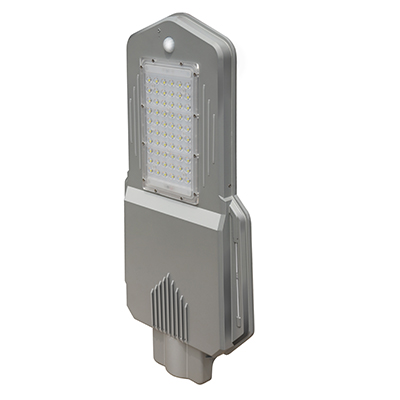

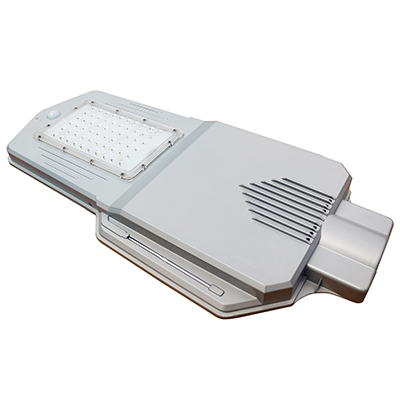

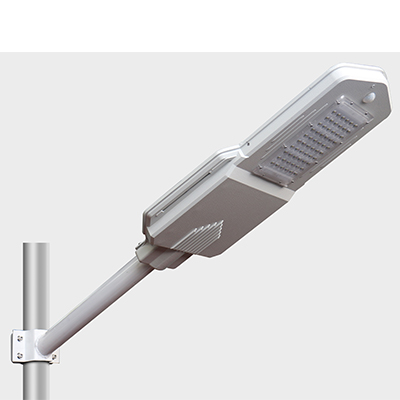

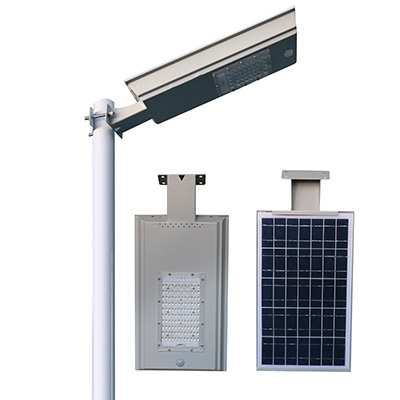

C-Star LED Solar Street Light: Innovative design, private model products, easy installation.
Adopt metal aluminum shell, life span is more than 20 years.
Highlight lamp beads, light effect >100lm / w.

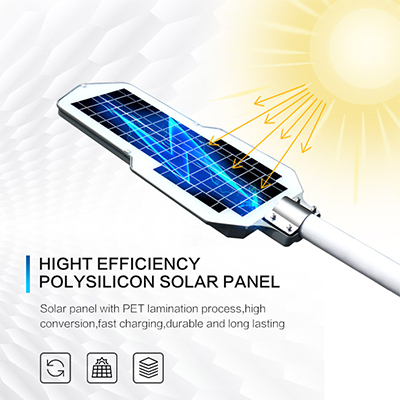

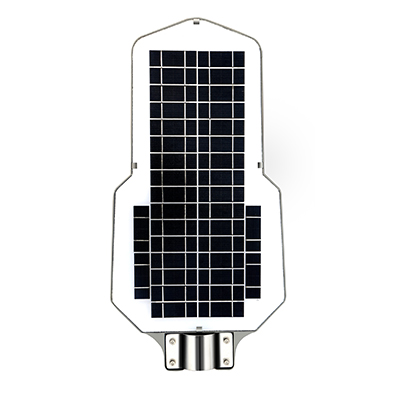

High-efficiency wafer solar panel with a life span of more than 20 years.
LiFePO4 battery with a life span of more than 8 years.

Intelligent MPPT controller, three intelligent working modes.

Power: 5W,10W, 15W, 20W, 25W, 30W。

Warranty: According to the needs of different projects, we can provide 2 years / 3 years / 5 years warranty.

Different countries or cities have different sunshine conditions and rainy days. Customers need to provide detailed project information, and we will make corresponding solutions according to the location of the project.



Solar Street Light Mini Series 15W Spec.




Solar street light Model: CSS215
Solar panel Max Power 18W  poly
Battery li-ion battery 3.7V 111WH
LiFePO4 battery 3.2V 128WH
LED Led chip brand Bridgelux 3030
Lumen(LM) 1500lm
CCT (k) 6000-7000k
Life Time 50000 hours
Lighting Viewing Angle 140°×70°
Working TEMP( ) -20°~+60°

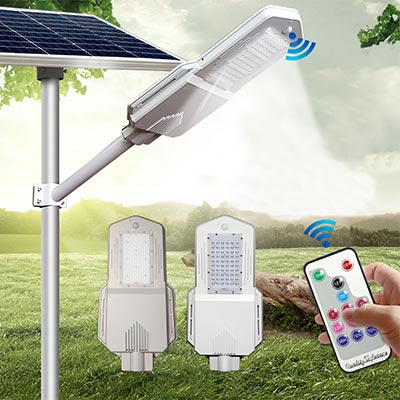

Working Mode 1. Time Control Mode ,    2.Sensoring Mode   ,   3.Time Control + Sensoring Mode        (Switched by smart remote control)
Charge time(by sun): 8-10hours (with enough strong shine)
Discharge time 10-12 hours per night     5-7rainy days
Certificate CE/ROHS/IP65
Packing Product size 60*590*320mm
Packing size 3.3kg
Net weight 100*660*360mm
Gross weight 4kg
Packing way 1sets/carton
Packs Containers 20ft container 1300 pcs
40gp container 3000pcs
Installation height 3-4m Suggestion distance 15-20m



Solar Street Light Mini Series 20W Spec.:



Solar street light Model: CSS220
Solar panel Max Power 20W mono
Battery li-ion battery 3.7V 133WH
LiFePO4 battery 3.2V 154WH
LED Led chip brand Bridgelux 3030
Lumen(LM) 2000lm
CCT (k) 6000-7000k
Life Time 50000 hours
Lighting Viewing Angle 140°×70°
Working TEMP( ℃ ) -20°~+60°
Working Mode 1. Time Control Mode ,    2.Sensoring Mode   ,   3.Time Control + Sensoring Mode        (Switched by smart remote control)
Charge time(by sun): 8-10hours (with enough strong shine)
Discharge time 10-12 hours per night     5-7rainy days
Certificate CE/ROHS/IP65
Packing Product size 60*590*320mm
Packing size 3.5kg
Net weight 100*660*360mm
Gross weight 4.2kg
Packing way 1sets/carton
Packs Containers 20ft container 1300 pcs
40gp container 3000pcs
Installation height 5-6m Suggestion distance 20-25m
