LED Outdoor Lighting

LED Street Light L60 Series

High quality die-cast aluminium alloy design housing.

Adopt multi-chips 3030 LED with long lifespan >50,000 hours.

Lighter weight design and excellent heat dissipation by cooling fins structure.

Type III-M optical lens available for 2/3 lanes lighting.

The whole lamp reach IP66 IK10 rating.

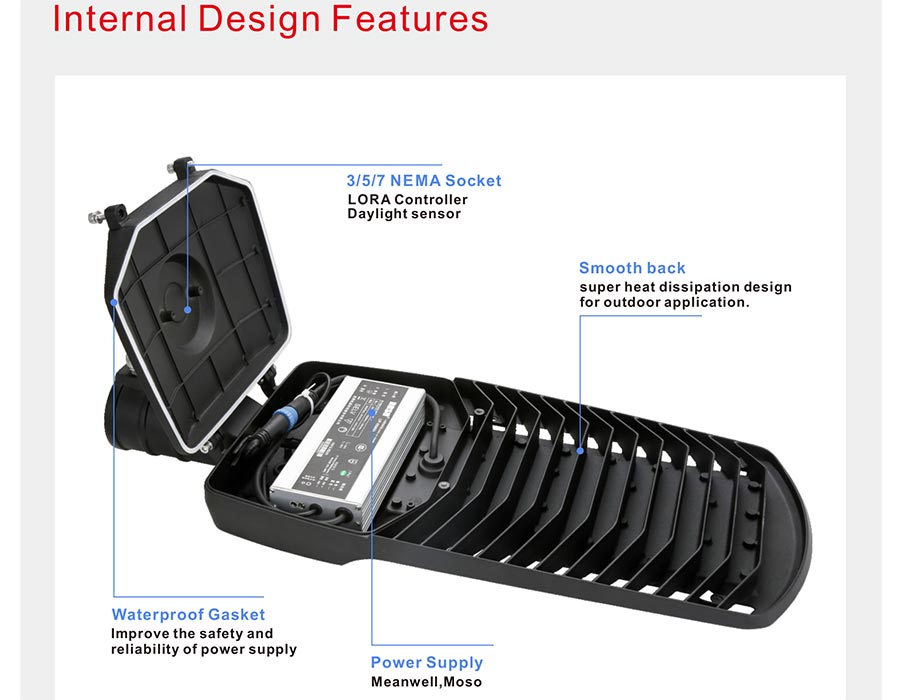

Easier maintenance design.

Dimming and smart lighting system available upon request.

Send Inquiry Chat now

LED Street Light Model Name:

LED Street Light Details:

LED Street Light Spec.:

Electric Data

Model

CS-L60-30

CS-L60-50

CS-L60-80

CS-L60-120

CS-L60-150

CS-L60-200

Power

30W

50W

80W

120W

150W

200W

Power Efficiency

88%

88%

90%

92%

92%

92%

Power Factor

>0.95

Power Supply

MOSO/MW/SOSEN

Working Voltage

90-305V/249-528V AC,50/60Hz

Photometric Specifictions

LEDs

3030 LED

CRI

>70

Luminous Efficiency

110-130lm/w

LEDs Qty

36pcs

56pcs

80pcs

128pcs

176pcs

224pcs

Luminous Flux(±5%)

3600lm

6000lm

9600lm

14400lm

18000lm

24000lm

CCT

3000K/4000K/5000K/5500K/6000K

Beam angle

Type III-M

Mechanical Specifications

IP/IK Rate

IP66/IK10

Lamp Pole

Ø60mm

Working Environment

40°C~50°C,20%~90% H.R

Storage Temperature

40°C~85°C,10%~90% H.R.

Body Material

ADC#12

Lens Material

PC

Dimmable

1-10V,DALI,LORA SYSTEM

N.W.(KG)

1.73

1.73

3.1

3.1

3.68

3.68

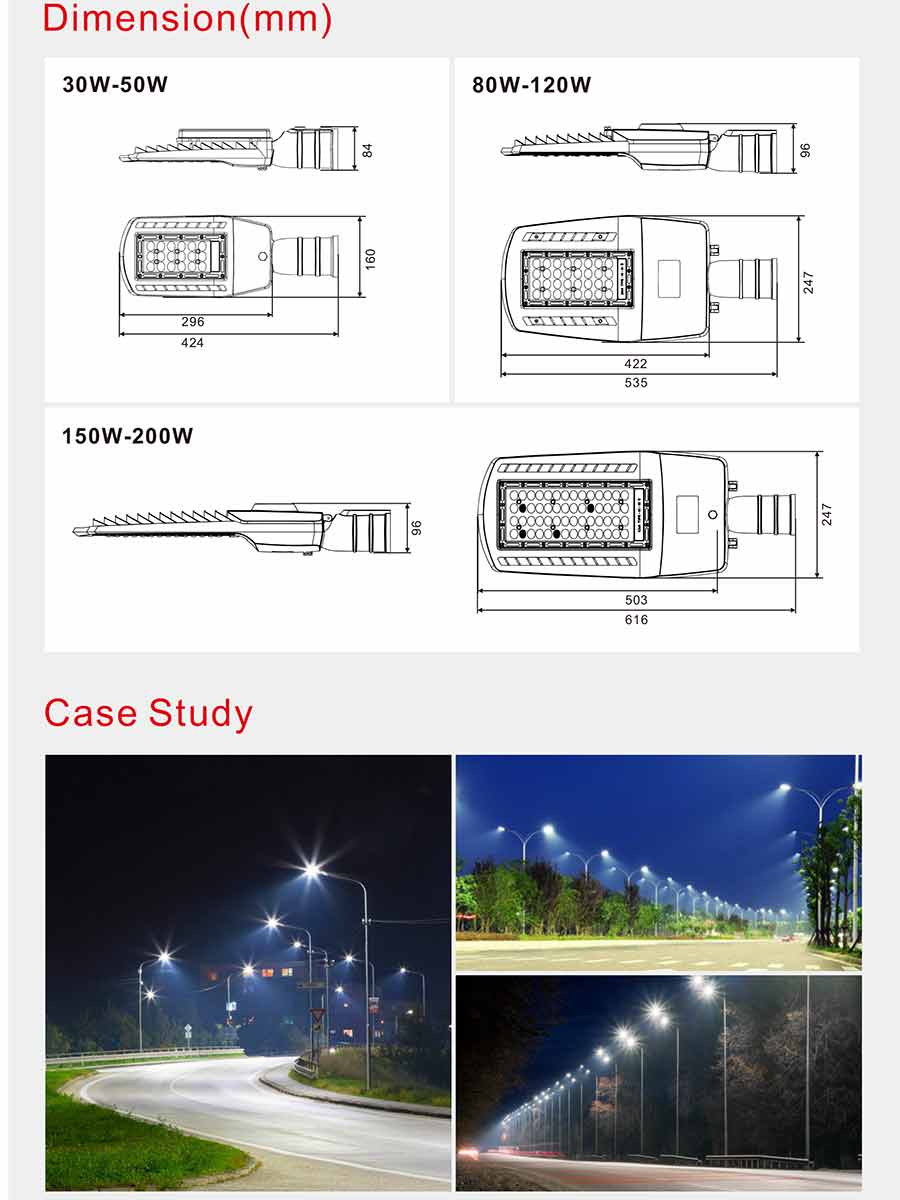

Lamp Size(mm)

424*160*84

424*160*84

535*247*96

535*247*96

616*247*96

616*247*96

Lifespan

>50,000 Hours (Ta=30°C@L70)

Warranty

5 Years

Working Temperature

-40℃-50℃， 20%-90% H.R

Storage Temperature

-40℃-85℃， 10%-90% H.R
