LED Outdoor Lighting

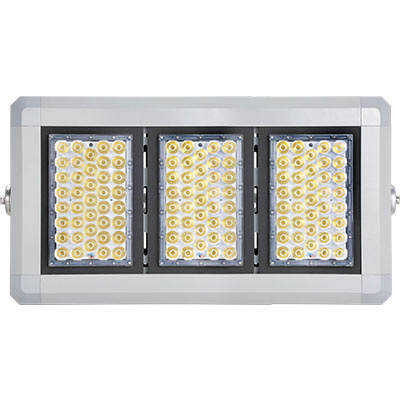

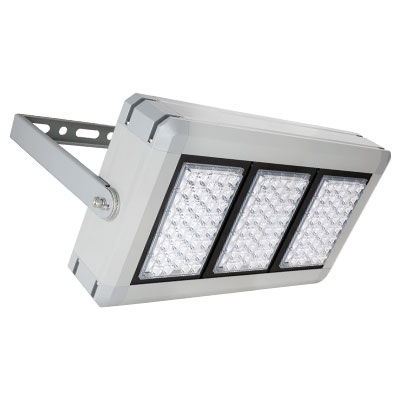

LED Stadium Light

High pressure die-cast aluminum alloy housing.High pressure die-cast aluminum alloy housing.

Made of non-corrosion heat sink with electrophoresis process technology.

High performance design with multi-chip package 3030/5050 LED source

and exclusive Lens increase performance,low light failure and dead lights.

The light transmittance up to 98%.Luminous efficacy up to 110-130lm/w.

10°/15°/24°/36°/60°/90°/30X45°/90X40° for option,Uniform light

distribution apply to different industrial light projects.

Excellent operating temperature -40°C ~ 50°C

-180° ~ 180° adjustable angle available for outdoor & indoor lighting application.

Green product,no UV,IR radiation or mercury pollution.IEC62471 passed.

With excellent housing design reach IP66/IK10 rating.

Installation method optional by wall mounted & pole mounted.

Lifespan over 50,000 hours,5 years warranty.

LED Stadium Light Spec.:

Model

CS-V15-750W

Power

750W

Input Voltage

AC 90-305V, 249-528V, 50/60Hz

LEDs

5050 LED

CRI

70

CCT

3000K/4000/5000K/6000K

Beam Angle

10°/15°

24°/36°/60°/90°/30*45°/90*40°

Luminous Efficiency

≥110lm/w

130lm/w

Luminous Flux (±5%)

82500lm

97500lm

LEDs Qty.

SMD 3737  117pcs

EMC 5050   372pcs

IP Rate

IP66,IK08

Working Environment

-40~50,20%~90% H.R

Storage Temperature

-40~85,10%~90% H.R.

Body Material

Aluminum

Lens Material

PC

Certificates

CE,Rohs

N.W.

21.80 KG

Lamp Size(mm)

763*423*140mm

Lifespan

>50,000 Hours (Ta=30@L70)

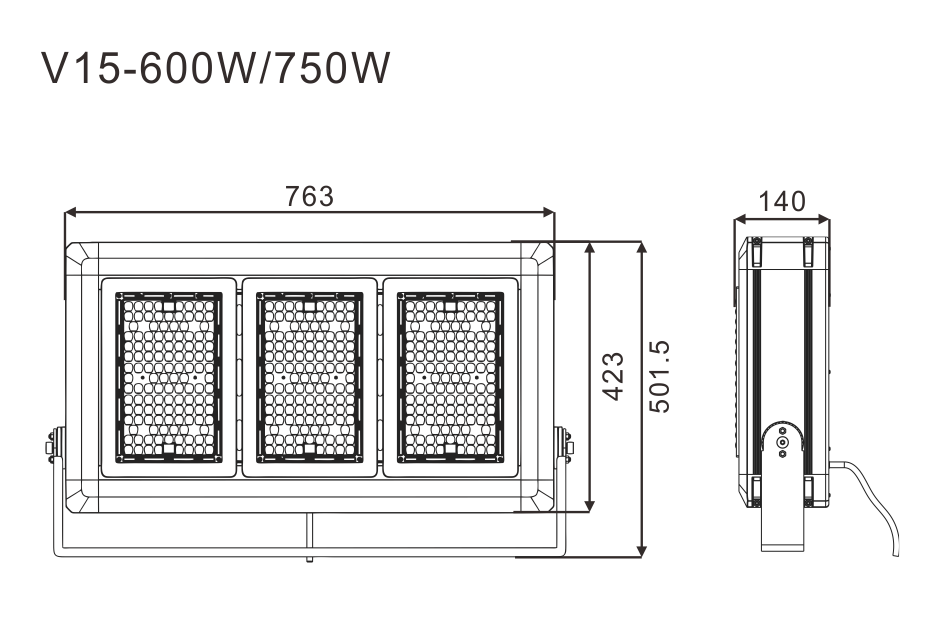

LED Stadium Light Size:

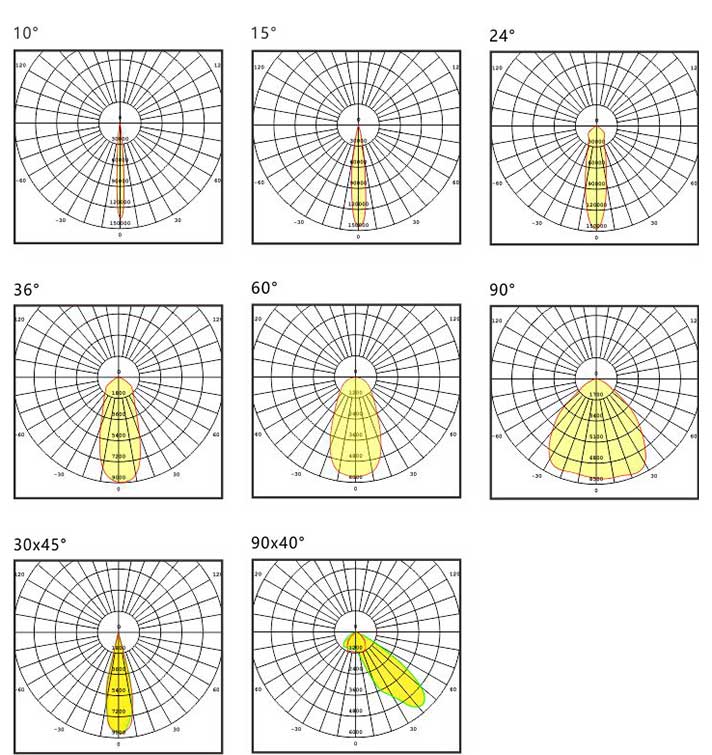

LED Stadium Light Distribution Curve:
