LED Outdoor Lighting

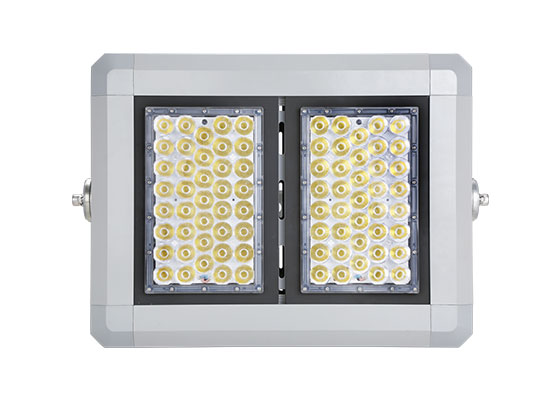

LED Stadium Light

High pressure die-cast aluminum alloy housing.High pressure die-cast aluminum alloy housing.

Made of non-corrosion heat sink with electrophoresis process technology.

High performance design with multi-chip package 3030/5050 LED source

and exclusive Lens increase performance,low light failure and dead lights.

The light transmittance up to 98%.Luminous efficacy up to 110-130lm/w.

10°/15°/24°/36°/60°/90°/30X45°/90X40° for option,Uniform light

distribution apply to different industrial light projects.

Excellent operating temperature -40°C ~ 50°C

-180° ~ 180° adjustable angle available for outdoor & indoor lighting application.

Green product,no UV,IR radiation or mercury pollution.IEC62471 passed.

With excellent housing design reach IP66/IK10 rating.

Installation method optional by wall mounted & pole mounted.

Lifespan over 50,000 hours,5 years warranty.

Send Inquiry Chat now

LED Stadium Light Spec.:

Model	CS-V15-500W
Power	500W
Input Voltage	AC 90-305V, 249-528V, 50/60Hz
LEDs	5050 LED
CRI	＞70
CCT	3000K/4000/5000K/6000K
Beam Angle	10°/15°	24°/36°/60°/90°/3045°/9040°
Luminous Efficiency	≥110lm/w	≥130lm/w
Luminous Flux (±5%)	≥55000lm	≥65000lm
LEDs Qty.	SMD 3737 78pcs	EMC 5050 248pcs
IP Rate	IP66,IK08
Working Environment	-40℃~50℃,20%~90% H.R
Storage Temperature	-40℃~85℃,10%~90% H.R.
Body Material	Aluminum
Lens Material	PC
Certificates	CE,Rohs
N.W.	17.80 KG
Lamp Size(mm)	543423140mm
Lifespan	>50,000 Hours (Ta=30℃@L70)

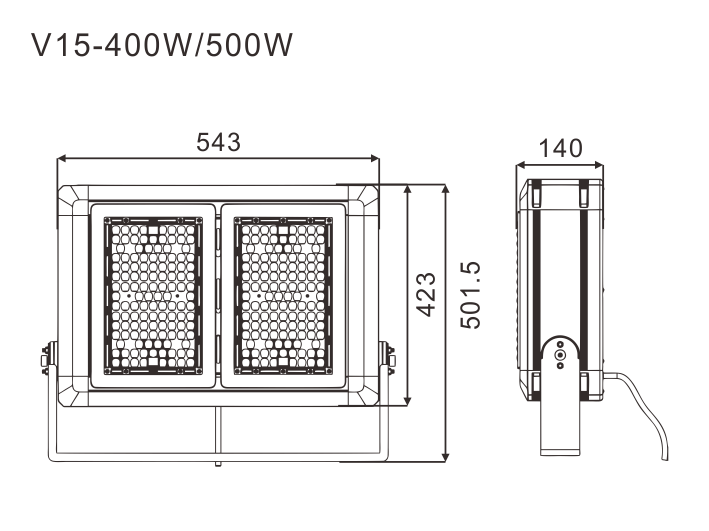

LED Stadium Light Size:

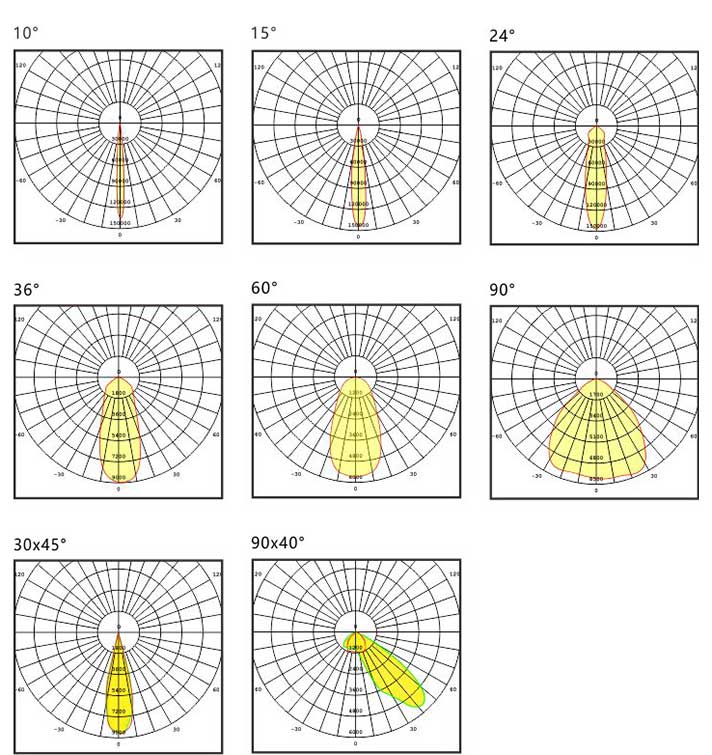

LED Stadium Light Distribution Curve:
