■ Using customized high-end lens technology, compared with similar products, the light efficiency is increased by 8%, and the light transmittance is up to 98%.
■ Adopting the air duct type heat dissipation design, the overall weight of the product is reduced and the heat dissipation performance is good, reducing the light attenuation and extending the life of the light source. The modular design can effectively reduce the maintenance cost for later use.
■ Low energy consumption, high-efficiency constant current drive, energy saving 60%; with over-current, over-voltage, lightning, high temperature protection to fully guarantee the life and stability of the product.
■ Rugged and durable, long service life, up to 50000 hours; no need to change lamps frequently, and no routine maintenance.
Product Models:
Product Features:

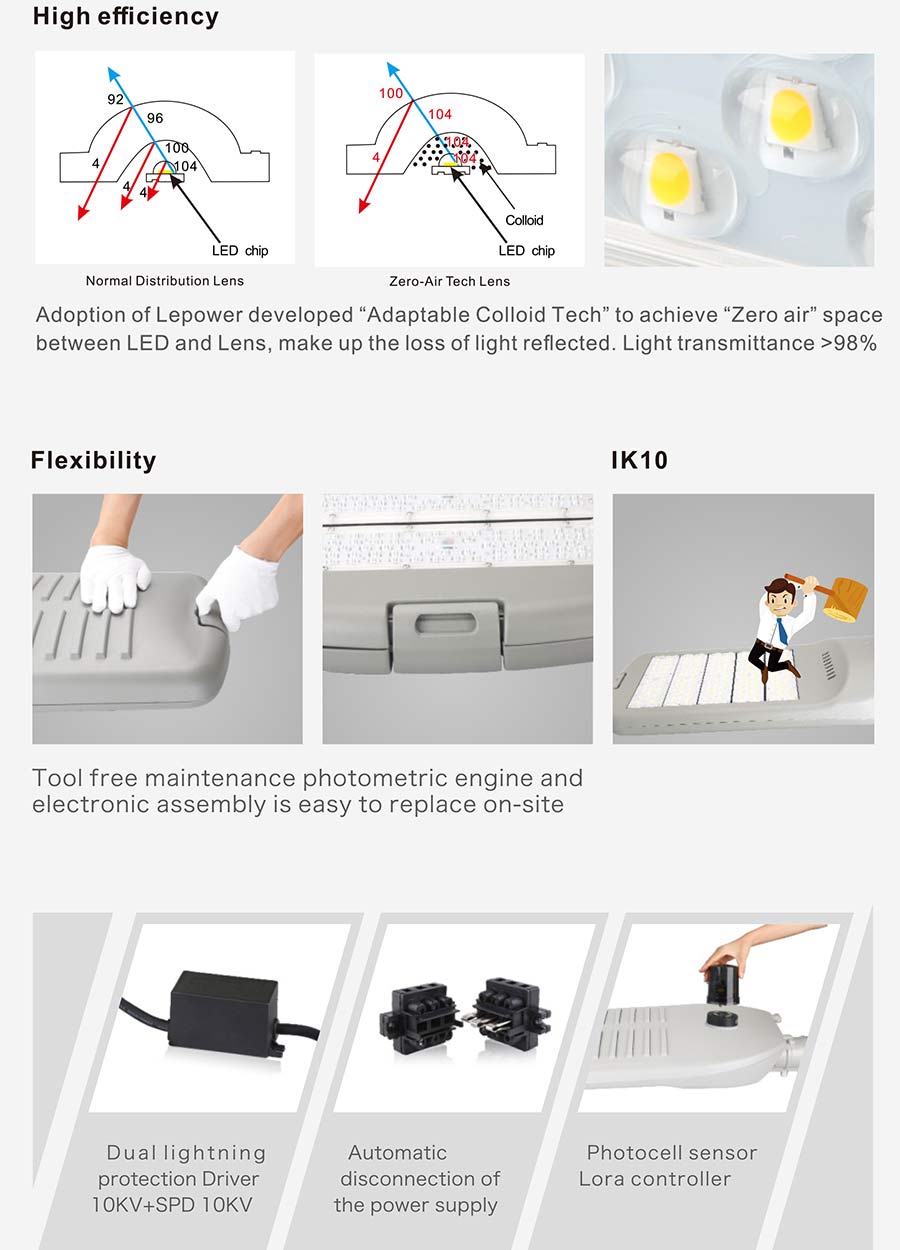

■ Using customized high-end lens technology, compared with similar products, the light efficiency is increased by 8%, and the light transmittance is up to 98%.
■ Adopting the air duct type heat dissipation design, the overall weight of the product is reduced and the heat dissipation performance is good, reducing the light attenuation and extending the life of the light source. The mainstream CHEM modular design can effectively reduce the maintenance cost for later use.
■ Low energy consumption, high-efficiency constant current drive, energy saving 60%; with over-current, over-voltage, lightning, high temperature protection to fully guarantee the life and stability of the product.
■ Rugged and durable, long service life, up to 50000 hours; no need to change lamps frequently, and no routine maintenance.
■ Green and environmental protection, the light source has no ultraviolet and infrared radiation, and no mercury pollution.
■ Beautiful appearance without dust accumulation, protection grade IP66.
■ Fast response, no strobe; wide operating voltage range.
■ The lamp bead adopts polycrystalline package, high light efficiency, stable performance, low light decay, no dead light.

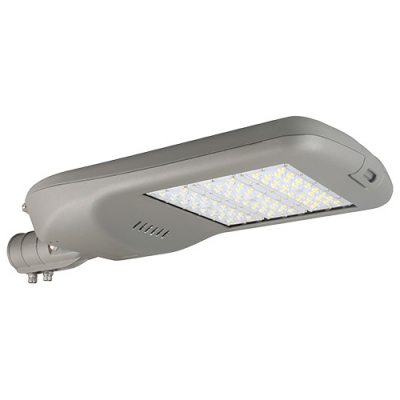

Product Details:
Product Spec.:
Electric Data
Model

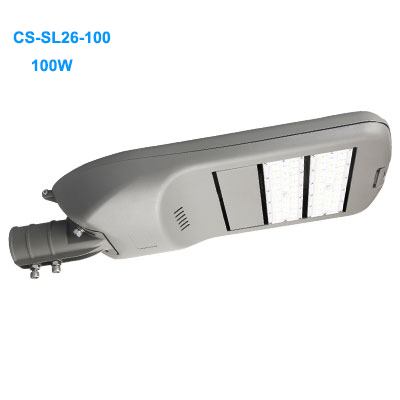

CS-SL26-100

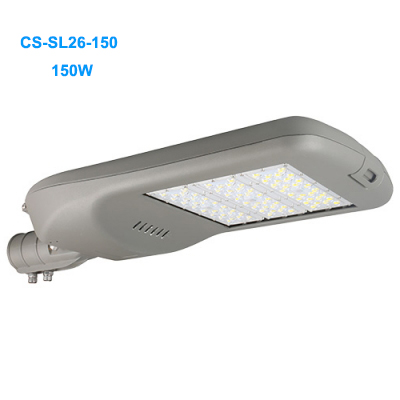

CS-SL26-150

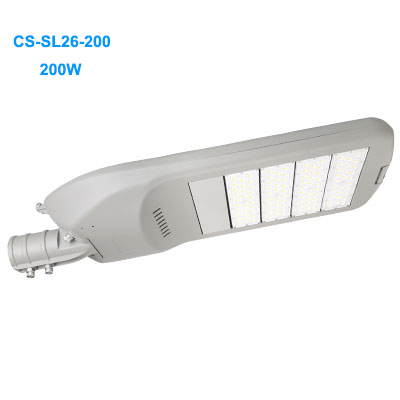

CS-SL26-200

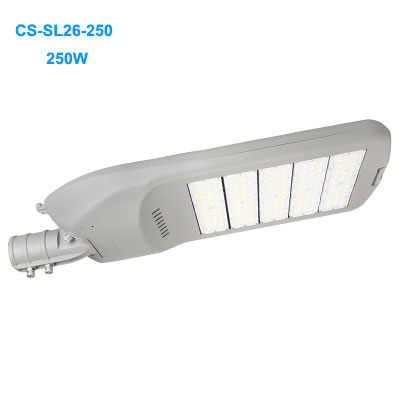

CS-SL26-250
Power
10W
150W
200W
250W
Power
Efficiency
90%
92%
92%
92%
Power Factor
>0.95
Power Supply
MOSO/MW/SOSEN
Working Voltage
90-305V/249-528V
AC,50/60Hz
Photometric
Specifictions
LEDs
5050 LED
CRI
>70
Luminous
Efficiency
155-160lm/w
LEDs Qty
56pcs
84pcs
112pcs
140pcs
Luminous
Flux(±5%)
16000lm
24000lm
32000lm
40000lm
CCT
3000K/4000K/5000K/5500K/6000K
Beam angle
Type I,II,III
Mechanical
Specifications
Installation
Angel
Horizontal
-10~15° Vertical -10~15°
IP/IK Rate
IP66,IK10
Lamp Pole
Ø50-60mm
Working
Environment
-40°C~50°C,20%~90%
H.R
Storage
Temperature
-40°C~85°C,10%~90%
H.R.
Body Material
Aluminum
6063-T5
Lens Material
PC
Dimmable
1-10V,DALI,LORA
SYSTEM
N.W.(KG)
5.8
6.4
8
8.7
Lamp Size(mm)
710x340x235
710x340x235
850x350x235
850x350x235
Lamp
Size(inch)
27.9x13.4x9.3
27.9x13.4x9.3
33.5x12.8x7.3
33.5x12.8x7.3
Lifespan
>50,000
Hours (Ta=30°C@L70)
Warranty
5 Years
l

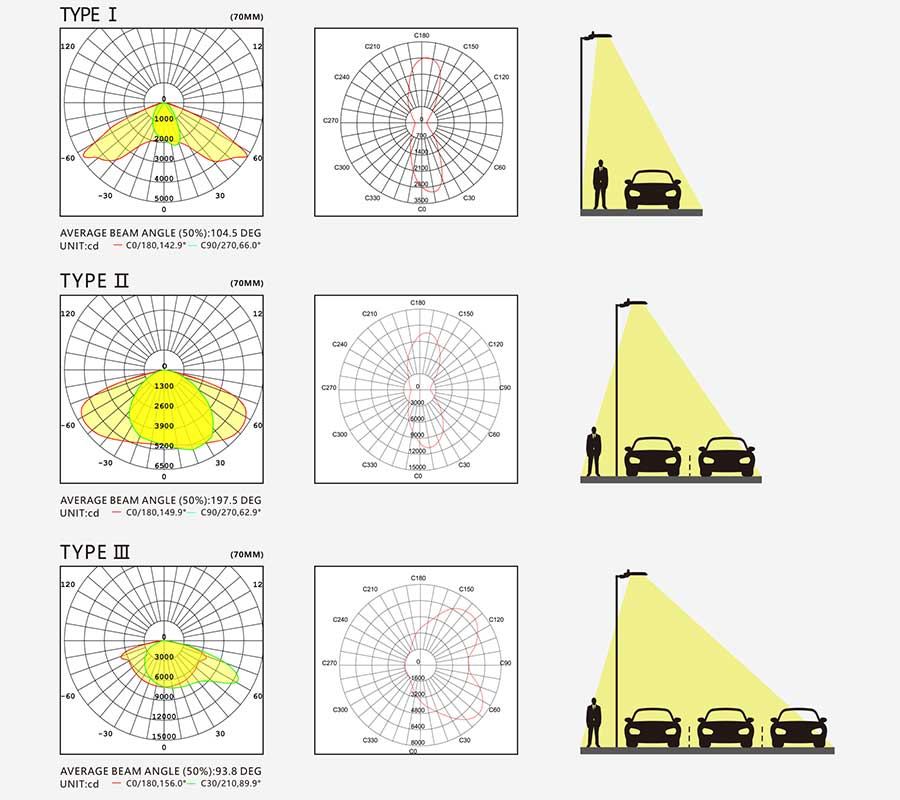

Product Distribution Curve.:

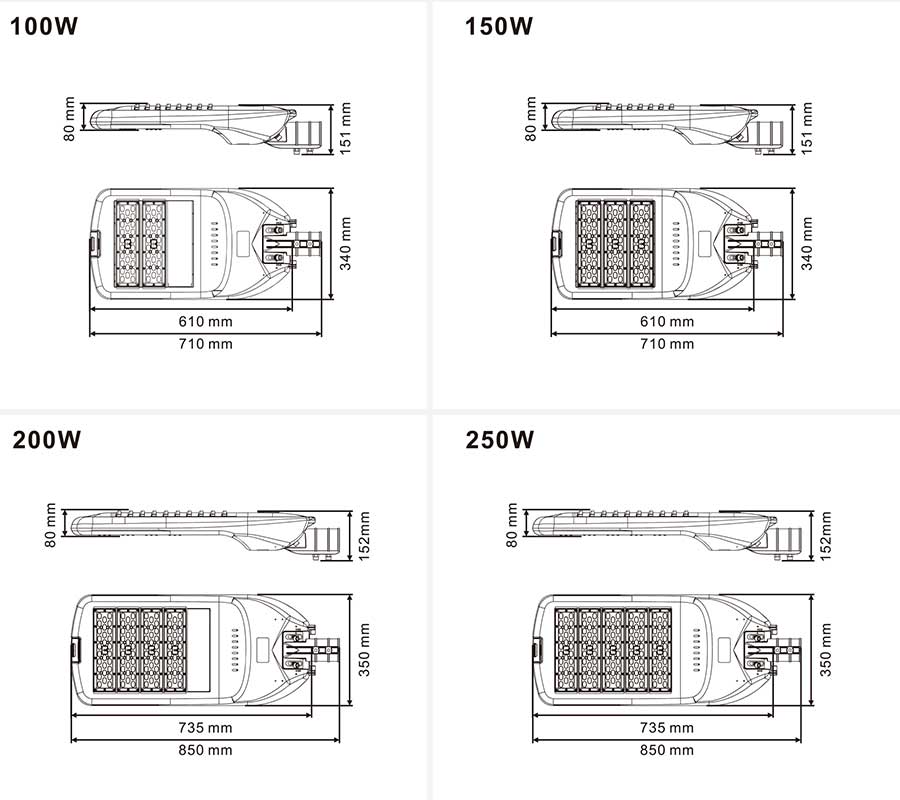

Product Dimension(mm):
