LED Outdoor Lighting

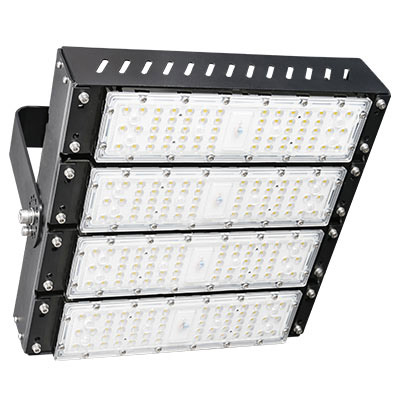

LED Flood Light FL5B Series

High pressure die-cast aluminum alloy housing.
Made of non-corrosion with electrophoresis process technology.
High performance design with multi-chips package 3030 LED source and
exclusive Lens to stable performance,low light failure and NO dead lights.
The light transmittance up to 98%.Luminous efficacy up to 120lm/w.
24°,36°,60°,90°145x100° for option,Uniform light distribution apply
to different industrial light project.
Excellent operating temperature -40°C ~ 50°C
Adjusted angle available for outdoor & indoor lighting application.

Send Inquiry Chat now

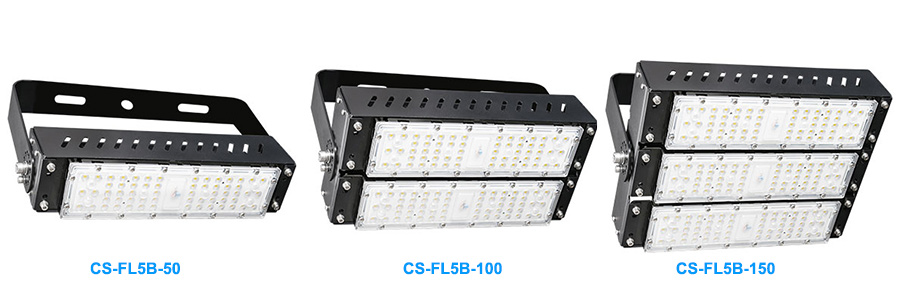

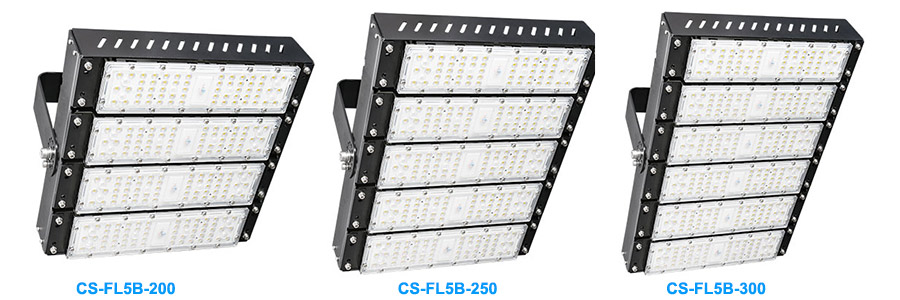

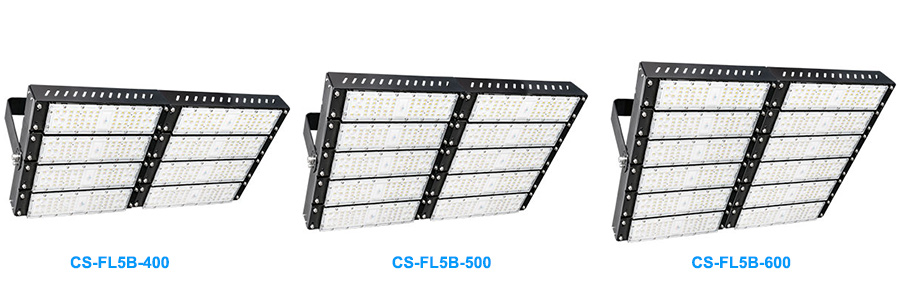

Product Models:

Product Features:

High pressure die-cast aluminum alloy housing.
Made of non-corrosion with electrophoresis process technology.
High performance design with multi-chips package 3030 LED source and
exclusive Lens to stable performance,low light failure and NO dead lights.
The light transmittance up to 98%.Luminous efficacy up to 120lm/w.
24°,36°,60°,90°145x100° for option,Uniform light distribution apply
to different industrial light project.
Excellent operating temperature -40°C ~ 50°C
Adjusted angle available for outdoor & indoor lighting application.
Green product,no UV,IR radiation or mercury pollution Passed IEC62471.
With excellent housing design reach IP66/IK10 rating.
Installation method is option by wall mounted & pole mounted
0-10V,DALI system,Microwave motion upon request.
CE,ROHS. LM80, IK10 approved.
Life-span over 50,000 hours,5 years warranty.

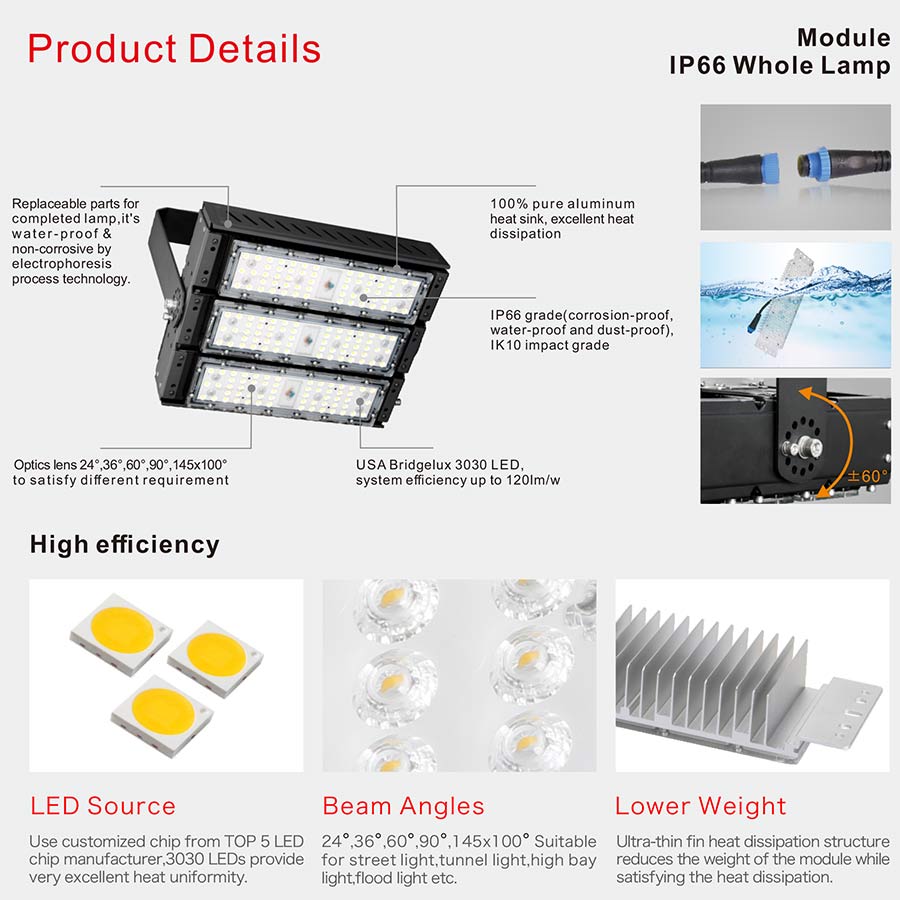

Product Details:

Product Spec.:

Electric Data
Model	CS-FL5B-50	CS-FL5B-100	CS-FL5B-150	CS-FL5B-200	CS-FL5B-250	CS-FL5B-300	CS-FL5B-400	CS-FL5B-500	CS-FL5B-600
Power	50W	100W	150W	200W	250W	300W	400W	500W	600W
Power Efficiency	88%	90%	90%	90%	90%	90%	90%	90%	90%
Power Factor	>0.95
Power Supply	MOSO/MW
Working Voltage	90-305V/249-528V AC,50/60Hz
Photometric Specifictions
LEDs	3030 LED
CRI	>70(>80,>90 optional)
Luminous Efficiency	>120lm/w
LEDs Qty	60pcs	120pcs	180pcs	240pcs	300pcs	360pcs	480pcs	600pcs	720pcs
Luminous Flux(±5%)	6250lm	12500lm	18750lm	25000lm	31250lm	37500lm	50000lm	62500lm	75000lm
CCT	3000K/4000K/5000K/5500K/6000K
Beam angle	24°/36°/60°/90°/145x100°
Mechanical Specifications
Installation Angel	±180°(50/100W) ; ±60°(150-600W)
IP/IK Rate	IP66,IK10
Working Environment	-40°C~50°C, 20%~90% RH
Storage Temperature	-45°C~55°C,10%~90% RH
Body Material	Aluminum
Lens Material	PC
N.W.(KG)	3.2	4.3	5.2	6.8	8	9.2	13	15.2	17.6
Lamp Size(mm)	335x91x193	335x170x193	335x247x193	335x325x193	403x335x193	481x335x193	642x335x193	642x403x193	642x481x193
Lifespan	>50,000 Hours (Ta=30°C@L70)
Warranty	5 Years

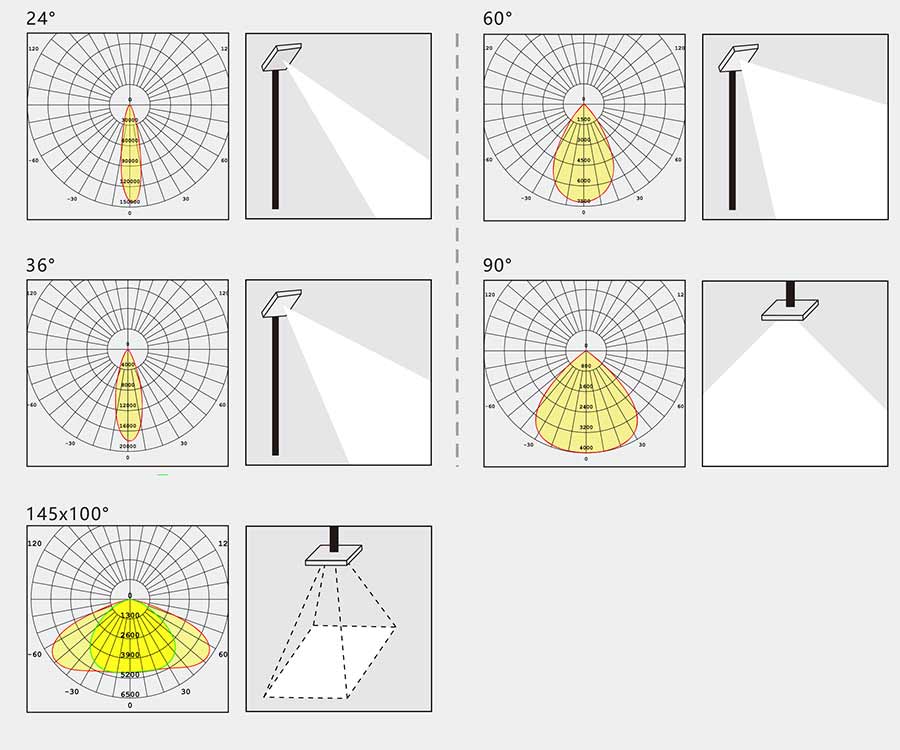

Product Distribution Curve:

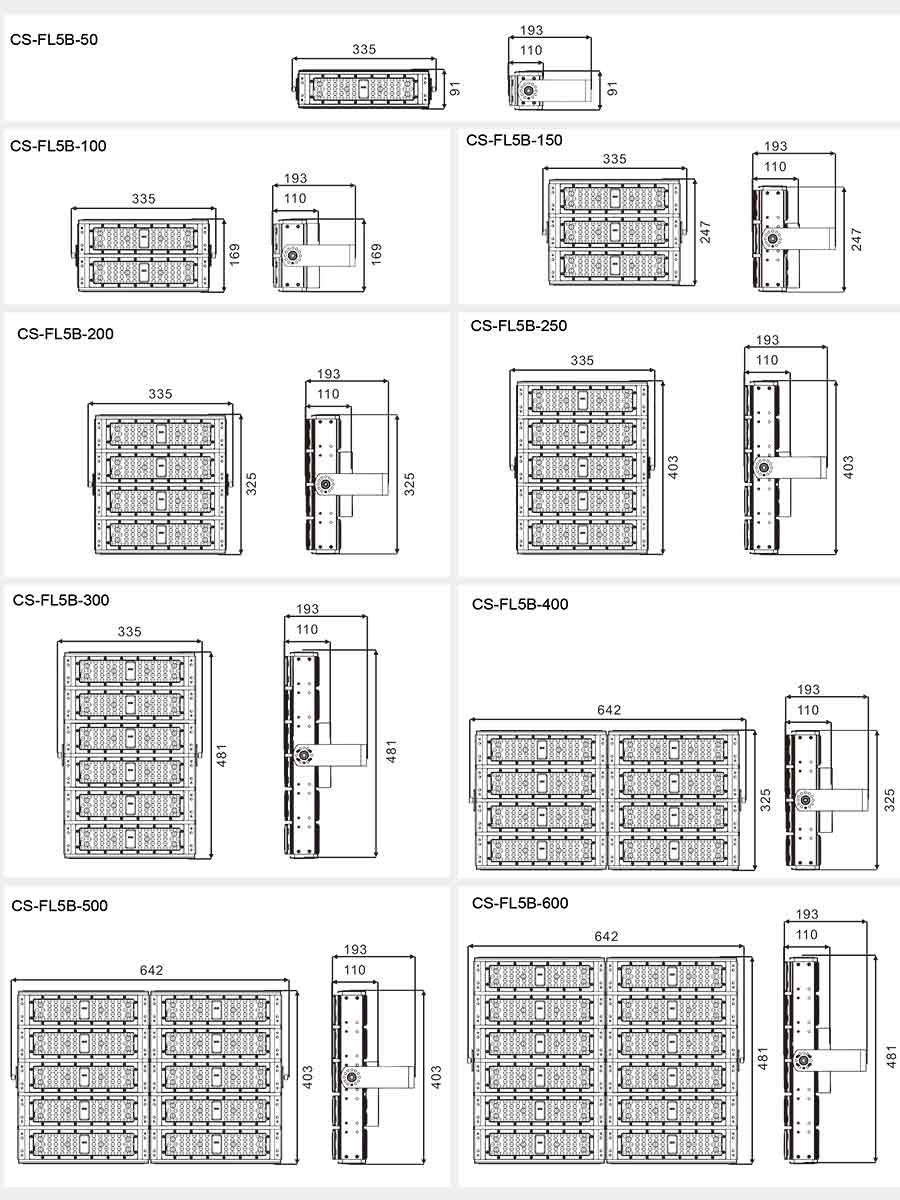

Product Dimensions :

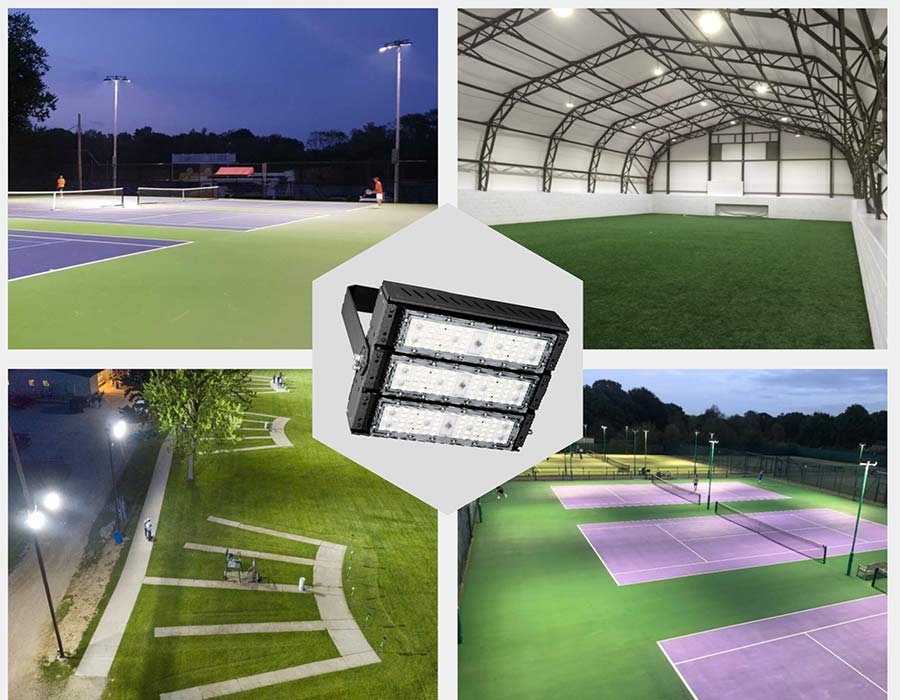

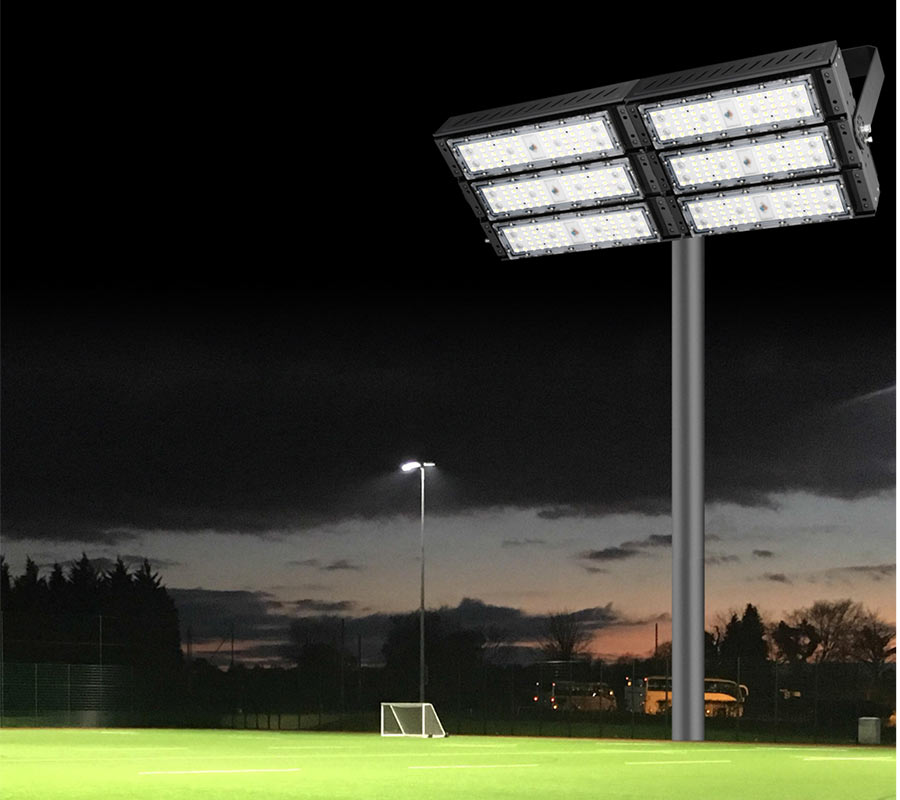

Production Applications:
