LED Outdoor Lighting

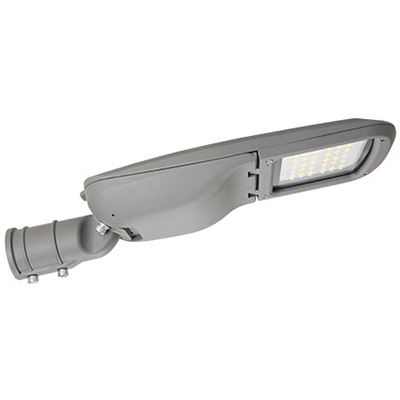

LED Street Light L29 Series

High pressure die-cast aluminum alloy housing from 30W to 200W.

Substantial friction resistant powder spraying process surface treatment.

Adopt multi-chips package 5050 LEDs. Stable performance,flip chip

technology, single unit’s damage won't affect others' normal work.

Optical lens design. Type II-M,III-M,IV-S optional.Uniform lighting

distribution apply to different lighting projects.

Excellent operating temperature -40~50°C

-10~10° adjustable bracket applicable different mounting arm.

With excellent housing design reach IP66/IK08 rating.

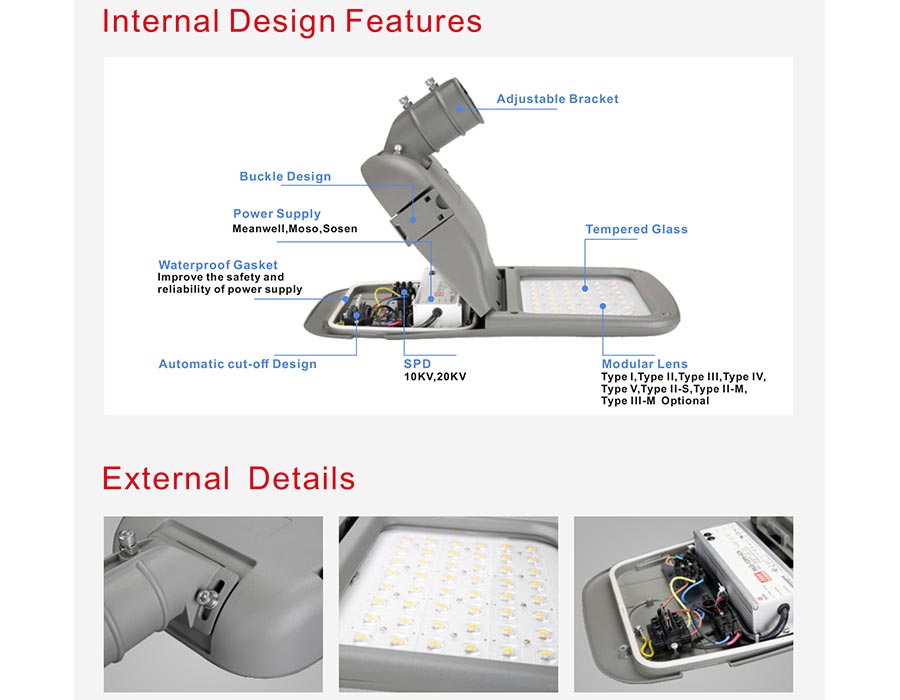

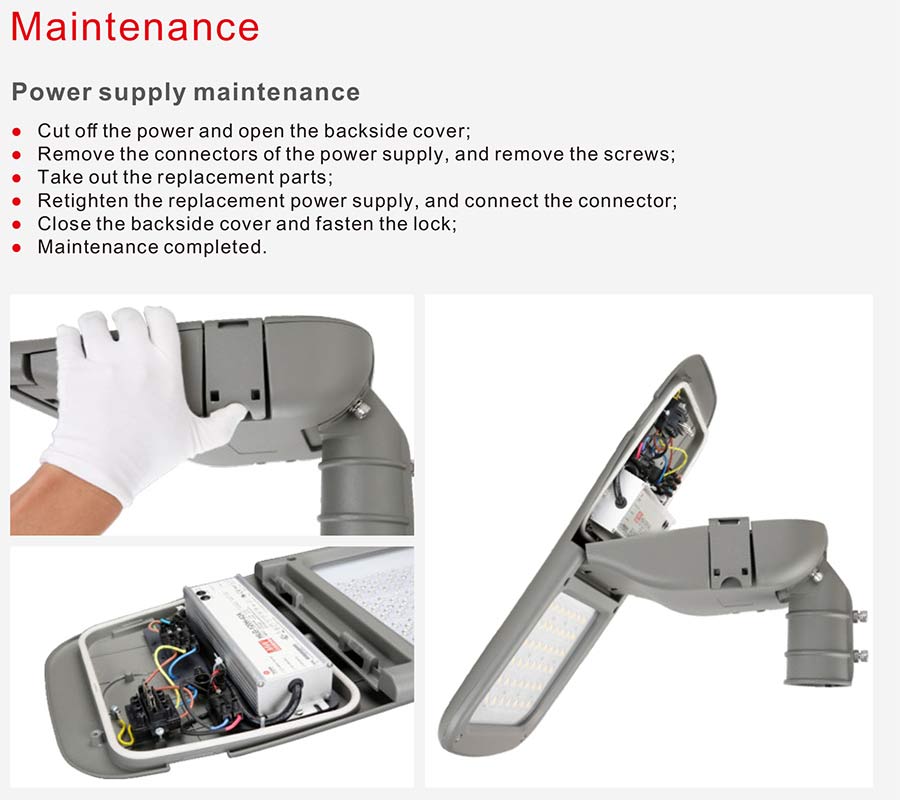

Buckle design realize tool-free maintenance.

Automatic cut-off design.

Dimming and smart lighting system available upon request.

Long service life over 50,000 hours, 5 years warranty.

Send Inquiry Chat now

Product Models:

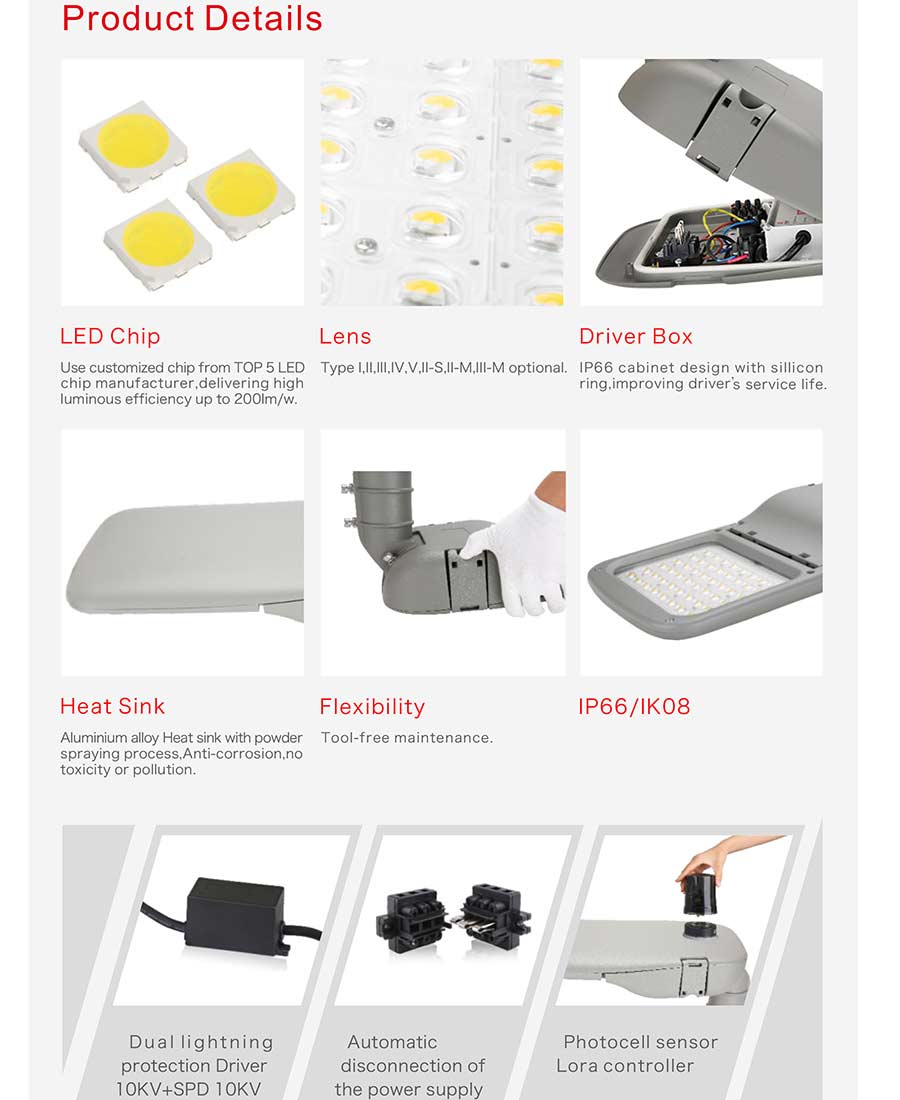

Product Details:

Product Spec.:

Electric Data

Model

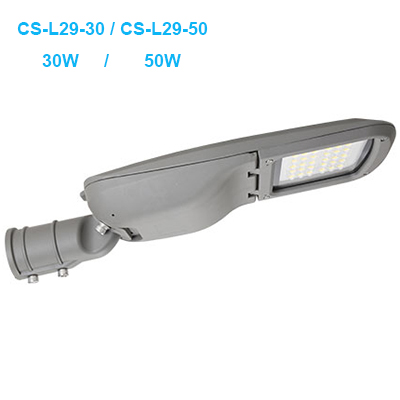

CS-L29-30

CS-L29-50

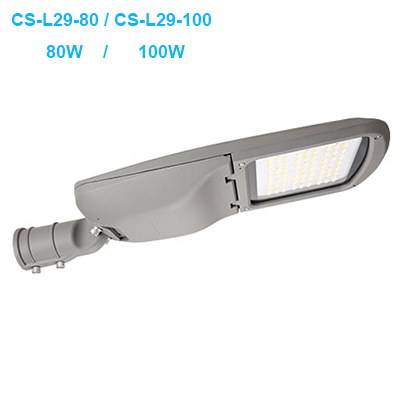

CS-L29-80

CS-L29-100

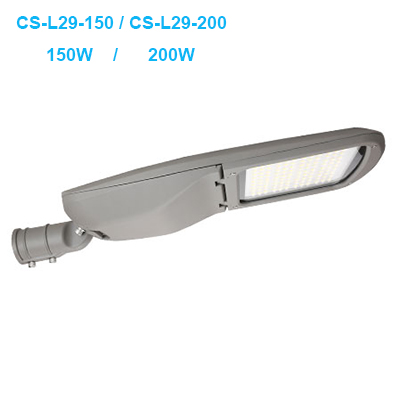

CS-L29-150

CS-L29-200

Power

30W

50W

80W

100W

150W

200W

Power Efficiency

88%

88%

90%

90%

90%

90%

Power Factor

>0.95

Power Supply

MOSO/MW/SOSEN

Working Voltage

90-305V/249-528V AC,50/60Hz

Photometric Specifictions

LEDs

5050 LED

CRI

>70

Luminous Efficiency

140lm/w（Type I,II,III, II-S, II-M, III-M）

Luminous Efficiency

130lm/w(Type IV,V)

LEDs Qty

24pcs

36pcs

48pcs

72pcs

90pcs

120pcs

Luminous Flux(±5%)
140lm/w

4200lm

7000lm

11200lm

14000lm

21000lm

28000lm

Luminous Flux(±5%)
130lm/w

3600lm

6500lm

10400lm

13000lm

19500lm

26000lm

CCT

3000K/4000K/5000K/5500K/6000K

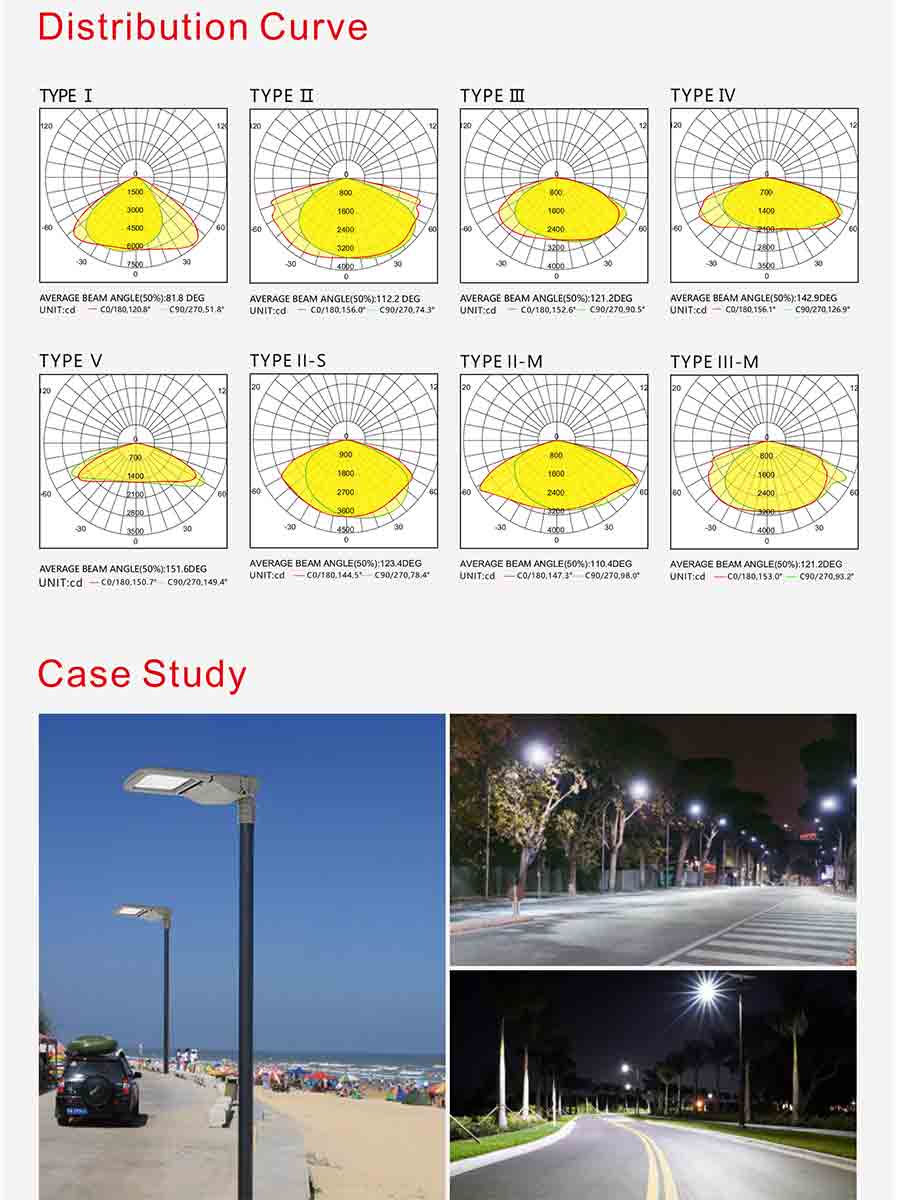

Beam angle

Type I,II,III,IV,V,II-S,II-M,III-M

Mechanical Specifications

Installation Angel

Horizontal -10~10° Vertical 10°

IP/IK Rate

IP66/IK08

Lamp Pole

Ø60mm

Working Environment

40°C~50°C,20%~90% H.R

Storage Temperature

40°C~85°C,10%~90% H.R.

Body Material

Aluminum 6063-T5

Lens Material

PC+Glass

Dimmable

1-10V,DALI,LORA SYSTEM

N.W.(KG)

4.8

4.8

4.85

4.85

5.7

5.7

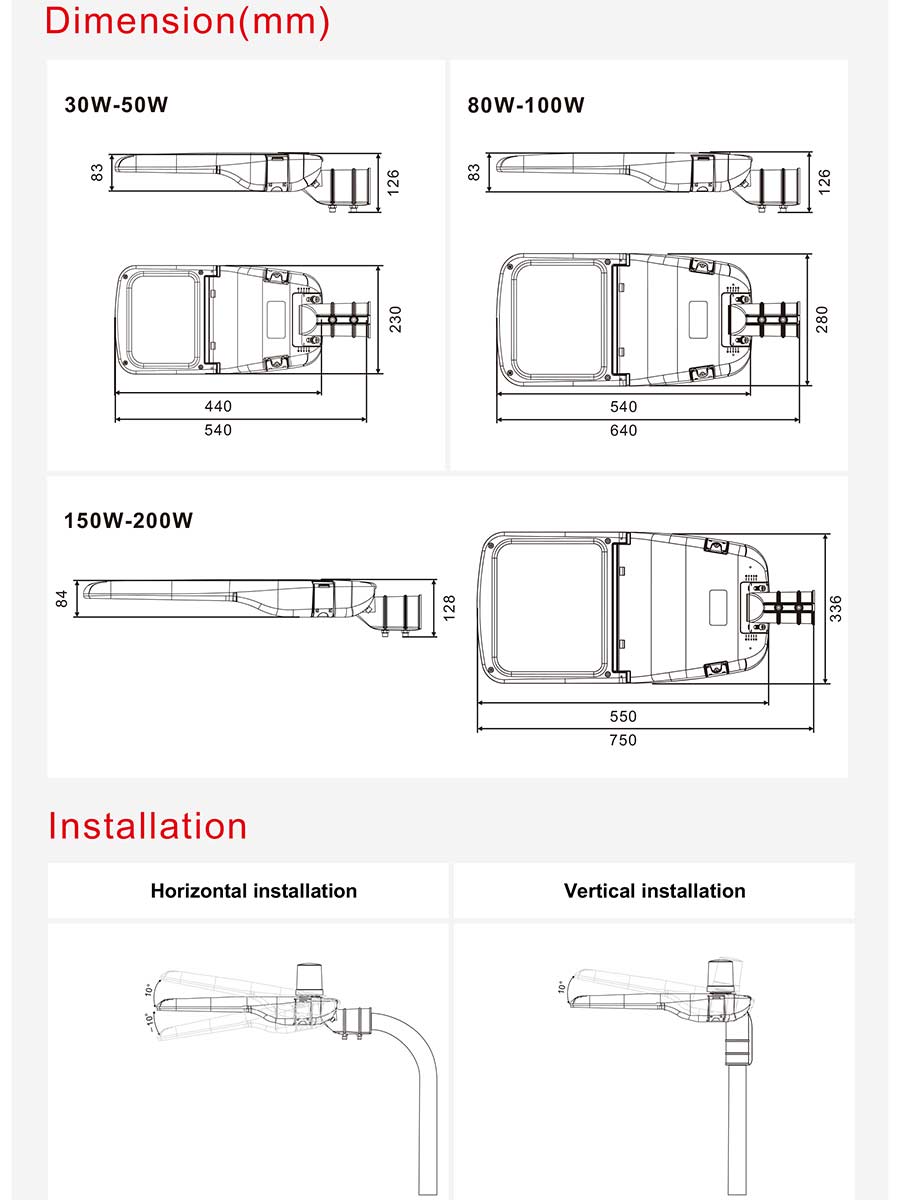

Lamp Size(mm)

540*230*126

540*230*126

640*280*126

640*280*126

750*336*128

750*336*128

Lifespan

>50,000 Hours (Ta=30°C@L70)

Warranty

5 Years

Working Temperature

40℃-50℃， 20%-90% H.R

Storage Temperature

40℃-85℃， 10%-90% H.R

Popular tags: LED street lamp, LED Street light, LED street lamp, street lamp, street lamp, road lighting, high pole lamp, LED road lighting, street light factory, street lamp manufacturer, LED light production, LED street lamp factory, LED street lamp manufacturer, made in China, economic street lamp, highlight Street lamp, sodium lamp, energy-saving lamp, courtyard lamp, double-arm street lamp, single-arm street lamp, solar street light, white light street light, yellow light street lamp, small street lamp, MINI street lamp, low-power street light, led street light manufacturer

*Name:
*E-mail:
*Phone:
*Company:
Title:
*Content:

Electric Data
Model	CS-L29-30	CS-L29-50	CS-L29-80	CS-L29-100	CS-L29-150	CS-L29-200
Power	30W	50W	80W	100W	150W	200W
Power Efficiency	88%	88%	90%	90%	90%	90%
Power Factor	>0.95
Power Supply	MOSO/MW/SOSEN
Working Voltage	90-305V/249-528V AC,50/60Hz
Photometric Specifictions
LEDs	5050 LED
CRI	>70
Luminous Efficiency	140lm/w（Type I,II,III, II-S, II-M, III-M）
Luminous Efficiency	130lm/w(Type IV,V)
LEDs Qty	24pcs	36pcs	48pcs	72pcs	90pcs	120pcs
Luminous Flux(±5%) 140lm/w	4200lm	7000lm	11200lm	14000lm	21000lm	28000lm
Luminous Flux(±5%) 130lm/w	3600lm	6500lm	10400lm	13000lm	19500lm	26000lm
CCT	3000K/4000K/5000K/5500K/6000K
Beam angle	Type I,II,III,IV,V,II-S,II-M,III-M
Mechanical Specifications
Installation Angel	Horizontal -10~10° Vertical 10°
IP/IK Rate	IP66/IK08
Lamp Pole	Ø60mm
Working Environment	40°C~50°C,20%~90% H.R
Storage Temperature	40°C~85°C,10%~90% H.R.
Body Material	Aluminum 6063-T5
Lens Material	PC+Glass
Dimmable	1-10V,DALI,LORA SYSTEM
N.W.(KG)	4.8	4.8	4.85	4.85	5.7	5.7
Lamp Size(mm)	540230126	540230126	640280126	640280126	750336128	750336128
Lifespan	>50,000 Hours (Ta=30°C@L70)
Warranty	5 Years
Working Temperature	40℃-50℃， 20%-90% H.R
Storage Temperature	40℃-85℃， 10%-90% H.R
