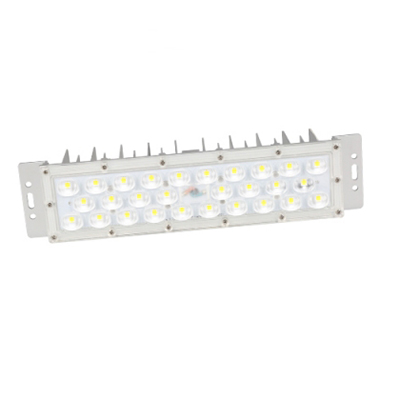

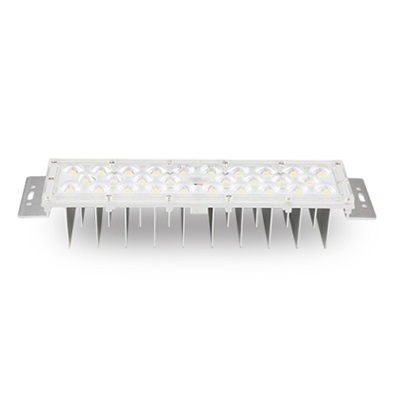

LED Street Light Module 5028-70B0F3

Use prefect anodizing aluminum alloy heatsink,improve the service life of radiator.
Excellent operating temperature -40°C ~ 50°C
High performance design with multi-chips package 5050 LED source.Stable performance,low light failure and NO dead lights.
Exclusive Lens.The light transmittance up to 98%.Luminous efficacy up to 190lm/w.
150x70°,150x90°,145x100° lens optional. Uniform light distribution apply to different streetlight project.
Replaceable and upgradable modular design easy assembly,easy installation,easy maintenance.
Green product,no UV,IR radiation or mercury pollution.Passed IEC62471...
With excellent housing design reach IP67 rating.
Double Clip on closure,"Plug and Play" system suitable for SKD.
CE,Rohs,UL,LM-79,LM-80 approved.
Life-span over 50,000 hours,5 years warranty.

Send Inquiry Chat now

LED Street Light Module 5028-70B0F3 Spec.:

Model	CS-MS5028-70B0F3
Power	30W	40W	50W	60W
Input Voltage	DC43V	DC 44V	DC 45V	DC 46V
LEDs	5050 LED
CRI	＞70(>80,>90 optional)
CCT	3000K/4000/5000K/6000K
Beam Angle	Type I,Type II,Type III
Luminous Efficiency	190lm/w	180lm/w	170lm/w	160lm/w
Luminous Flux (±5%)	5700	7200	8500	9600
LEDs Qty.	28PCS
IP /IK Rate	IP66,IK10
Working Environment	-40℃~50℃,20%~90% H.R
Storage Temperature	-40℃~85℃,10%~90% H.R.
Body Material	Aluminum
Lens Material	PC
Connector Size	M15
N.W.	0.48KG/pcs
Module Size(mm)	3007054
Lifespan	>50,000 Hours (Ta=30℃@L70)
Certificates	CE,Rohs,IP66,LM-79,LM-80

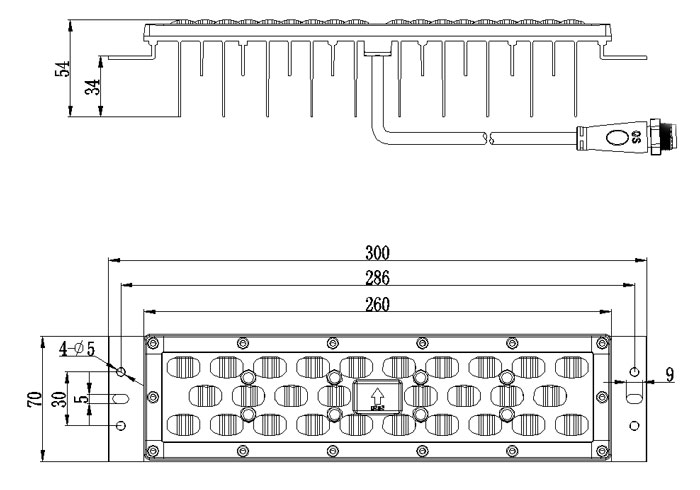

LED Street Light Module 5028-70B0F3 Dimension:

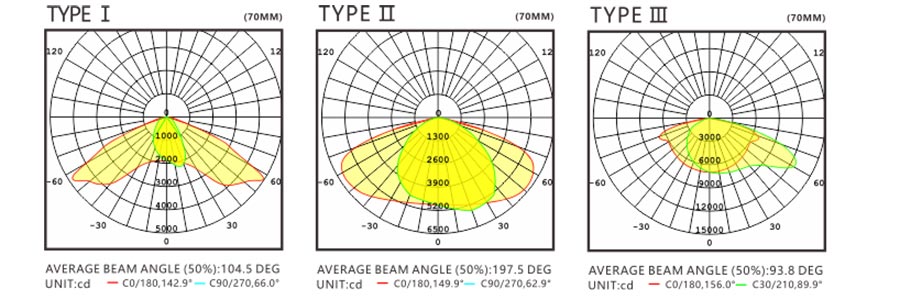

LED Flood Light Module distribution Curve:
