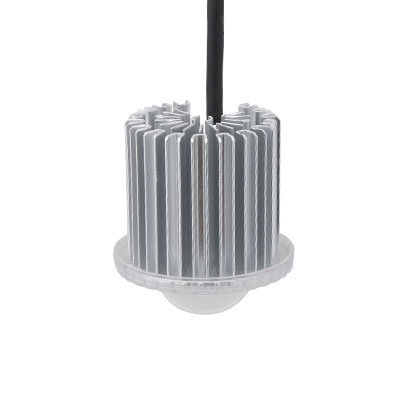

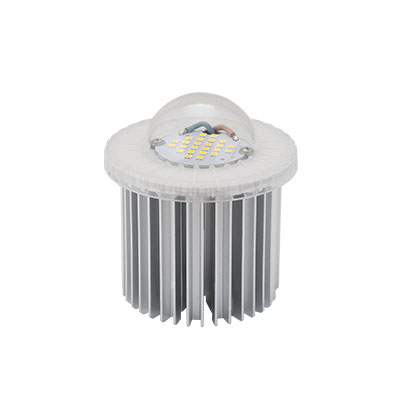

LED Street Light 20W 120°

Use prefect anodizing aluminum alloy heatsink,improve the service life of radiator.
Excellent operating temperature -40°C ~ 50°C
High performance design with multi-chips package 5050 LED source.Stable performance,low light failure and NO dead lights.
Exclusive Lens.The light transmittance up to 98%.Luminous efficacy up to 190lm/w.
150x70°,150x90°,145x100° lens optional. Uniform light distribution apply to different streetlight project.
Replaceable and upgradable modular design easy assembly,easy installation,easy maintenance.
Green product,no UV,IR radiation or mercury pollution.Passed IEC62471...
With excellent housing design reach IP67 rating.
Double Clip on closure,"Plug and Play" system suitable for SKD.
CE,Rohs, LM-79,LM-80 approved.
Life-span over 50,000 hours,5 years warranty.

LED Street Light Module 20W 120° Spec.:


Model

CS-MSL3020

Watt

20W

Input Voltage

34.5V

Input Current

0.73A

CCT

4000K

Luminous efficacy

130±5Lm/W

Total Lumen

3250±125LM

Ra

70

LEDs

3030(2C1B)

LEDs Qty

30PCS

Beam Angle

120°

IP

IP67

Working temperature

-20~5020%~90% H.R

Stock temperature

-20~8510%~90% H.R

Lifespan

50000H

Material

Aluminium +PC lens

Dimension

84*77.2mm

Packing

90*90*100mm

Out Carton(100pcs/Carton)

460*435*360mm

N.W.

0.19KG

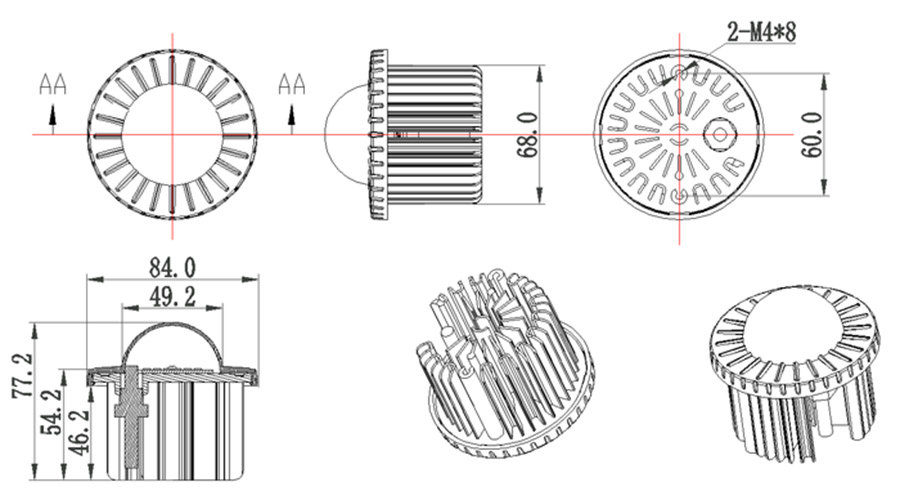

LED Street Light Module 20W 120° Dimension:



ED Street Light 20W 120° Module distribution Curve:
