LED Street Light 30W 60°

Use prefect anodizing aluminum alloy heatsink,improve the service life of radiator.
Excellent operating temperature -40°C ~ 50°C
High performance design with multi-chips package 5050 LED source.Stable performance,low light failure and NO dead lights.
Exclusive Lens.The light transmittance up to 98%.Luminous efficacy up to 190lm/w.
150x70°,150x90°,145x100° lens optional. Uniform light distribution apply to different streetlight project.
Replaceable and upgradable modular design easy assembly,easy installation,easy maintenance.
Green product,no UV,IR radiation or mercury pollution.Passed IEC62471...
With excellent housing design reach IP67 rating.
Double Clip on closure,"Plug and Play" system suitable for SKD.
CE,Rohs, LM-79,LM-80 approved.
Life-span over 50,000 hours,5 years warranty.

Send Inquiry Chat now

LED Street Light Module 30W 60° Spec.:

Model	CS-MSL3020
Watt	30W
Input Voltage	35.2V
Input Current	1.0A
CCT	2500K/3000K/4000K/5000K/6000K
Luminous efficacy	120±5Lm/W
Total Lumen	4200±175LM
Ra	＞70
LEDs	3030(2C1B)
LEDs Qty	30PCS
Beam Angle	60°
IP	IP67
Working temperature	-20℃~50℃，20%~90% H.R
Stock temperature	-20℃~85℃，10%~90% H.R
Lifespan	50000H
Material	Aluminium+PC lens
Dimension	122.8*75mm
Packing	12512575mm
Out carton(40pcs/carton)	582542260mm
N.W.	0.38KG

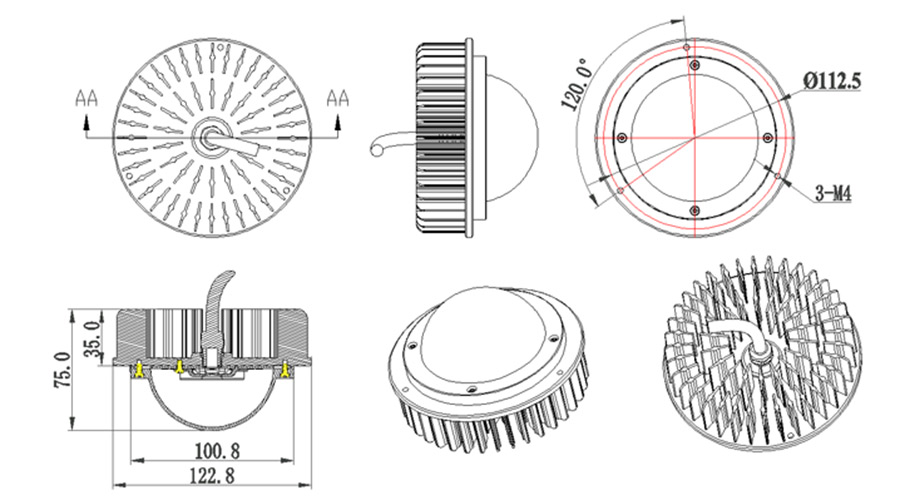

LED Street Light Module 30W 60° Dimension:

ED Street Light 30W 60° Module distribution Curve:
