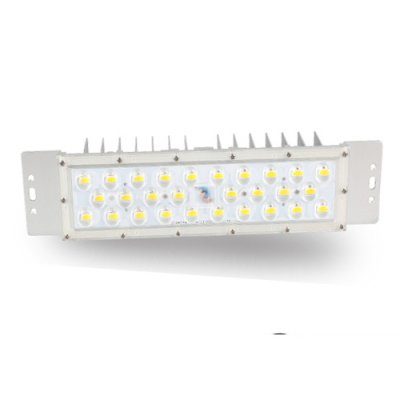

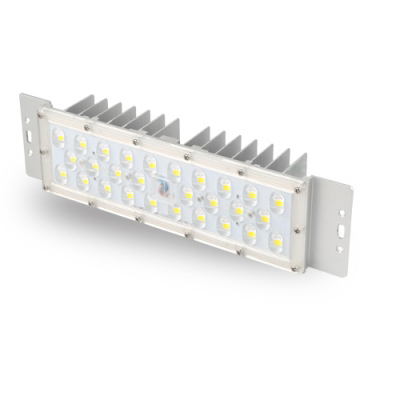

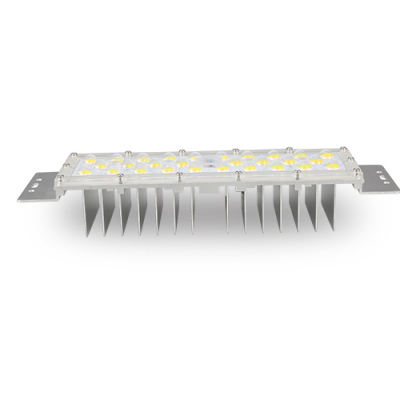

LED Street Light 75mm Module Vertical

Use prefect anodizing aluminum alloy heatsink,improve the service life of radiator.
Excellent operating temperature -40°C ~ 50°C.

High performance design with multi-chips package 5050 LED source.Stable performance,low light failure and NO dead lights.

Exclusive Lens.The light transmittance up to 98%.Luminous efficacy up to 190lm/w.
25°,40°,60°,90°,150° lens optional. Uniform light distribution apply to different streetlight project.
Replaceable and upgradable modular design easy assembly,easy installation,easy maintenance.
Green product,no UV,IR radiation or mercury pollution.Passed IEC62471...
With excellent housing design reach IP67 rating.
Double Clip on closure,"Plug and Play" system suitable for SKD.
CE,Rohs,UL,LM-79,LM-80 approved.
Life-span over 50,000 hours,5 years warranty.

LED Street Light Module 75mm Vertical Spec.:

Model

CS-MSL8028-75A0F8

Power

30W

40W

50W

60W

Input Voltage

DC43V

DC 44V

DC 45V

DC 46V

LEDs

5050 LED

CRI

70(>80,>90 optional)

CCT

3000K/4000/5000K/6000K

Beam Angle

Type I,Type II,Type III

Luminous Efficiency

190lm/w

180lm/w

170lm/w

160lm/w

Luminous Flux (±5%)

5700

           7200

          8500

            9600

LEDs Qty.

28PCS

IP /IK Rate

IP66,IK10

Working Environment

-40~50,20%~90% H.R

Storage Temperature

-40~85,10%~90% H.R.

Body Material

Aluminum

Lens Material

PC

Connector Size

M15

N.W.

0.52KG/pcs

Module Size(mm)

300*75*50

Lifespan

>50,000 Hours (Ta=30@L70)

Certificates

CE,Rohs,IP66,LM-79,LM-80

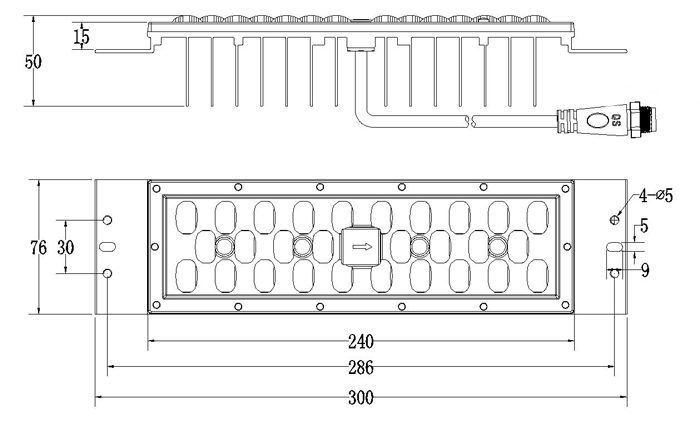

LED Street Light Module 75mm Vertical Dimension:

Street Light 75MM Vertical Module distribution Curve:
